Terminales Thermocontráctiles 5 a 35kV

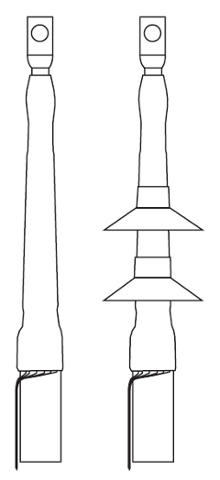

Terminal para cables de potencia de 5 a 35 KV, para uso interior y exterior.
Tecnología Thermocontráctil de simple instalación y máximo desempeño en condiciones severas de operación.
Alta resistencia a los rayos ultravioleta, humedad y contaminación marina, industrial y urbana.
Superficie hidrofóbica Anti_Tracking que impide la formación de caminos húmedos carbonosos reduciendo así las pérdidas de energía por corrientes de fuga.
Guía de Selección
| CATALOGO | CALIBRE | DIAMETRO SOBRE AISLAMIENTO | DIAMETRO SOBRE CUBIERTA | |||
|---|---|---|---|---|---|---|
| INTERIOR | EXTERIOR | AWG | MINIMO | MAXIMO | MINIMO | MAXIMO | (mm) | (mm) | (mm) | (mm) |
| 5 KV | ||||||
| TTC-8-1I | TTC-8-1E | 1/0 - 250 | 15.29 | 21.82 | 22.6 | 30.4 |
| TTC-8-2I | TTC-8-2E | 300 - 400 | 21.93 | 25.5 | 30.5 | 36.8 |
| TTC-8-3I | TTC-8-3E | 500 - 750 | 26.45 | 32.42 | 35.5 | 41.7 |
| TTC-8-4I | TTC-8-4E | 1000 - | 34.0 | 40.2 | 42.0 | 53.2 |
| 8 KV | ||||||
| TTC-8-1I | TTC-8-1E | 2 - 4/0 | 14.5 | 21.8 | 22.8 | 30.3 |
| TTC-8-2I | TTC-8-2E | 250 - 400 | 21.8 | 26.7 | 30.3 | 35.8 |
| TTC-8-3I | TTC-8-3E | 500 - 750 | 27.7 | 33.6 | 36.7 | 42.8 |
| TTC-8-4I | TTC-8-4E | 1000 - | 34.0 | 40.2 | 42.0 | 53.2 |
| 15 KV | ||||||
| TTC-15-1I | TTC-15-1E | 4 - 1/0 | 17.6 | 21.89 | 26.0 | 31.0 |
| TTC-15-2I | TTC-15-2E | 2/0 - 4/0 | 20.71 | 25.7 | 29.2 | 35.5 |
| TTC-15-3I | TTC-15-3E | 250 - 500 | 24.88 | 33.05 | 33.5 | 43.2 |
| TTC-15-4I | TTC-15-4E | 600 - 750 | 32.89 | 41.59 | 42.2 | 48.2 |
| TTC-15-5I | TTC-15-5E | 1000 - | 39.29 | 41.59 | 50.4 | 54.2 |
| 25 KV | ||||||
| TTC-25-1I | TTC-25-1E | 1 - 1/0 | 23.0 | 26.89 | 25.0 | 36.0 |
| TTC-25-2I | TTC-25-2E | 2/0 - 250 | 25.01 | 32.43 | 34.1 | 41.7 |
| TTC-25-3I | TTC-25-3E | 300 - 500 | 30.78 | 38.3 | 40.0 | 43.1 |
| TTC-25-4I | TTC-25-4E | 600 - 750 | 37.44 | 43.03 | 46.9 | 53.0 |
| TTC-25-5I | TTC-25-5E | 1000 - | 43.84 | 46.84 | 55.4 | 58.5 |
| 35 KV | ||||||
| TTC-35-1I | TTC-35-1E | 1 - 1/0 | 28.29 | 32.09 | 34.0 | 41.3 |
| TTC-35-2I | TTC-35-2E | 2/0 - 250 | 29.41 | 37.63 | 38.60 | 47.1 |
| TTC-35-3I | TTC-35-3E | 300 - 500 | 35.18 | 43.5 | 44.5 | 55.1 |
| TTC-35-4I | TTC-35-4E | 600 - 750 | 41.80 | 48.23 | 53.4 | 60.0 |
| TTC-35-5I | TTC-35-5E | 1000 - | 48.24 | 52.04 | 60.0 | 63.9 |
